Step 0: Basic HTML Structure

Live Demo: html/cog_map_step_00.html

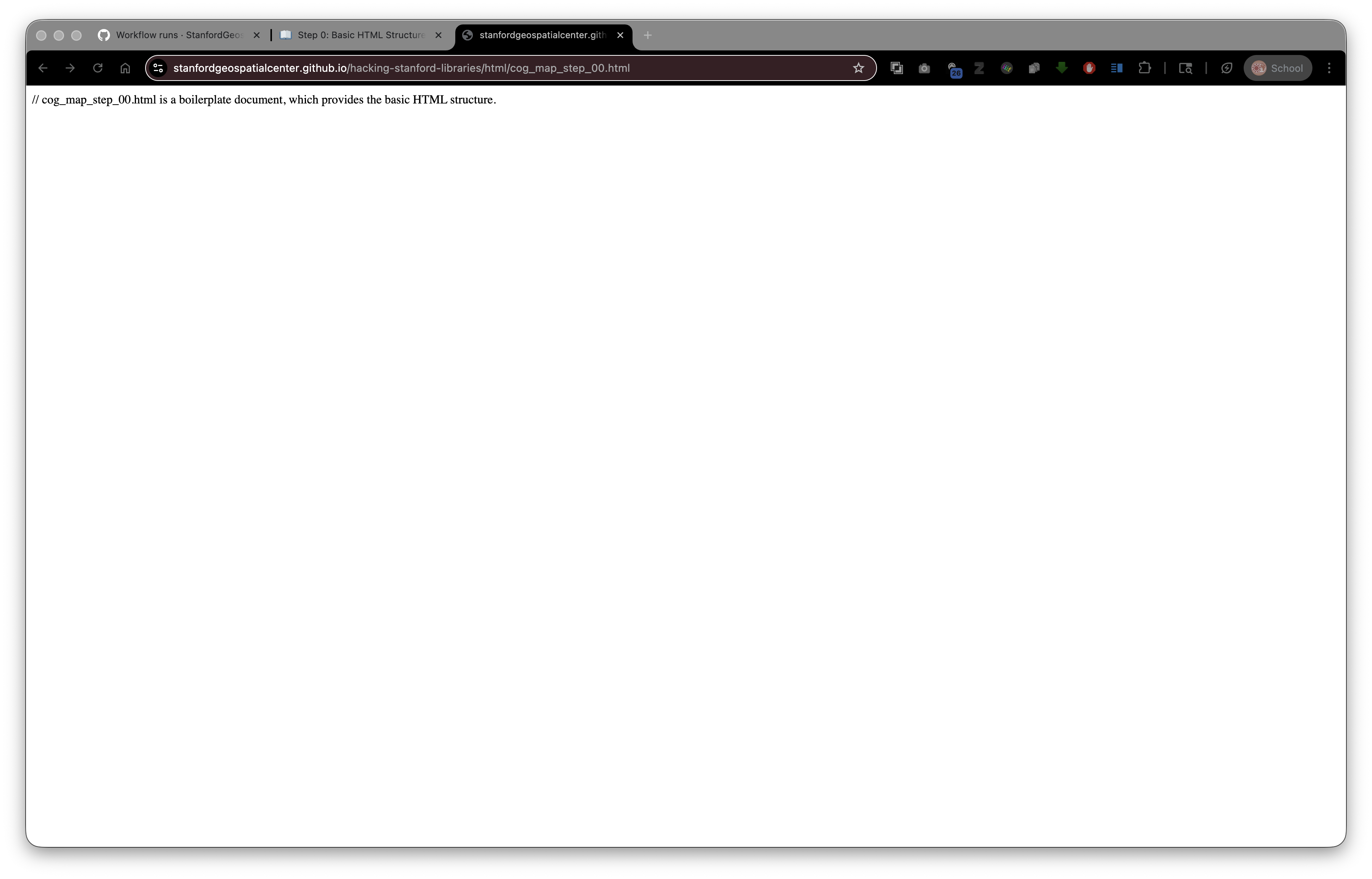

Step 0: Basic HTML structure - A blank HTML page with basic document structure

Overview

In this first step, we'll create the most basic HTML document possible. This is the foundation that every web page needs.

Learning Objectives

  • Understand what HTML is and why we need it
  • Learn the essential components of an HTML document
  • Understand the Document Type Declaration and basic HTML structure

What is HTML?

HTML (HyperText Markup Language)is the standard language for creating web pages. It's not a programming language - it's a markup language, which means it uses tags to describe the structure and content of a web page.

Think of HTML tags like labels in a filing system - they tell the browser "this is a heading," "this is a paragraph," "this is an image," etc.

Understanding File Paths

Before we begin, let's understand where files are located:

Your Project Structure

When you download this workshop, your files are organized like this:

hacking-stanford-libraries/
├── stanford_campus.geojson
├── stanford_public_art.geojson
├── stanford_campus_irg.tif
├── html/
│   ├── cog_map_step_00.html
│   ├── cog_map_step_01.html
│   ├── ...
│   ├── styles_wikidata.css
│   └── lib/
│       ├── leaflet.js
│       ├── leaflet.css
│       └── ...
└── supporting_docs/
    └── Digital Stacks.pdf

Relative Path Example: If you're editing html/cog_map_step_03.html and want to reference a data file at the root level, you would write:

../stanford_public_art.geojson

This means: "Go up one directory (..) from the html/ folder, then find stanford_public_art.geojson"

This structure mirrors how files will be organized in SDR: The HTML viewer files are in a subdirectory, while the main data assets (GeoJSON, TIF files) are at the collection's root level.

Digital Stacks Paths

When files are in the Stanford Digital Repository, they have absolute URLs:

https://stacks.stanford.edu/file/druid:vb564st1676/graduation-stanford.tif

This is a complete address that works from anywhere on the internet.

Key Point: In this workshop, we'll use relative paths for local files. When you deposit your application to SDR, these relative paths will continue to work because SDR preserves your folder structure!

The Basic HTML Document

Here's the code for our starting point:

<!DOCTYPE html>
<html lang="en">
<head>
    <base target="_top">
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1">
</head>
<body>

</body>
</html>

Breaking Down the Code

Let's understand each part:

1. Document Type Declaration

<!DOCTYPE html>

What it does: Tells the browser "this is an HTML5 document."

Why we need it: Without this, browsers might display your page in "quirks mode," which can cause strange rendering issues. Always start your HTML files with this line.

Think of it as: The file format declaration, like saying "this is a Word document" or "this is a PDF."

2. The HTML Element

<html lang="en">

What it does: This is the root element that contains all other HTML content.

The lang="en" attribute: Tells browsers and screen readers that the content is in English. This helps with:

  • Search engine optimization (SEO)
  • Accessibility (screen readers can use the correct pronunciation)
  • Translation tools

Closing tag: Every opening tag needs a closing tag. At the bottom of the file you'll see </html>

3. The Head Element

<head>
    <!-- Meta information goes here -->
</head>

What it does: Contains metadata (information about the page) that doesn't appear in the visible content.

Think of it as: The "behind the scenes" information - like the credits at the end of a movie.

4. Base Target

<base target="_top">

What it does: Tells the browser to open all links in the topmost browser window/tab.

Why we need it: Prevents links from opening in embedded frames or iframes.

Can be omitted if you're sure your page won't be embedded in an iframe.

5. Character Encoding

<meta charset="utf-8">

What it does: Tells the browser which character set to use for displaying text.

UTF-8 is the universal character encoding that supports:

  • All languages (English, Chinese, Arabic, emoji, etc.)
  • Special characters and symbols
  • Mathematical notation

Why we need it: Without this, special characters might display as gibberish (���).

6. Viewport Meta Tag

<meta name="viewport" content="width=device-width, initial-scale=1">

What it does: Controls how the page is displayed on mobile devices.

Breaking it down:

  • width=device-width - Make the page width match the device's screen width
  • initial-scale=1 - Start at 100% zoom (no zooming in or out by default)

Why we need it: Without this, mobile browsers try to display the full desktop version of your page, making everything tiny. This tag makes your page "mobile-friendly."

7. The Body Element

<body>

</body>

What it does: Contains all the visible content of your web page - text, images, links, maps, etc.

Currently: It's empty! We'll add content in the next steps.

Think of it as: The actual page that users see and interact with.

How HTML Tags Work

HTML uses opening tags and closing tags:

<tagname>content</tagname>
  • Opening tag: <tagname>
  • Closing tag: </tagname> (note the forward slash)
  • Content: Whatever goes between the tags

Self-closing tags don't have content and close themselves:

<meta charset="utf-8">

Try It Yourself

  1. Open a text editor (Notepad, VS Code, Sublime Text, etc.)
  2. Copy the basic HTML structure from above
  3. Save the file as my-first-page.html
  4. Open the file in your web browser (double-click it, or drag it into a browser window)

You should see a blank white page. That's perfect! We'll add content in the next step.

Connection to Digital Stacks

When you deposit an HTML file like this into the Stanford Digital Repository (SDR), it becomes accessible via Digital Stacks. For example, if you deposited it with DRUID abc123xyz456, it would be available at:

https://stacks.stanford.edu/file/druid:abc123xyz456/my-first-page.html

Anyone could then view your page by visiting that URL!

Related resources:

What's Next?

In Step 1: Adding a Map Container, we'll add visible content to the page and prepare space for our interactive map.

Key Takeaways

  • HTML is a markup language that structures web content
  • Every HTML document needs a DOCTYPE declaration
  • The <head> contains metadata, the <body> contains visible content
  • Character encoding (UTF-8) ensures text displays correctly
  • The viewport meta tag makes pages mobile-friendly
  • HTML files with relative paths work great in SDR!

Previous: Workshop Introduction | Next: Step 1: Adding a Map Container
