Step 5: Adding Cloud Optimized GeoTIFF from Digital Stacks

Overview

In this step, we'll add a high-resolution aerial photograph of Stanford campus, served directly from the Stanford Digital Repository through the Digital Stacks API.

Learning Objectives

Understand what Cloud Optimized GeoTIFFs (COGs) are
Learn how to access raster imagery from Digital Stacks
Use the georaster-layer-for-leaflet library
Understand PURLs and DRUIDs in the Stanford Digital Repository
Learn about masking/clipping raster data with GeoJSON

What is a Cloud Optimized GeoTIFF (COG)?

A Cloud Optimized GeoTIFF is a special format for storing geographic imagery that:

Streams efficiently over the internet (you don't need to download the whole file)
Loads progressively (low resolution first, then higher detail)
Includes georeferencing (knows exactly where on Earth it belongs)
Works with standard tools (compatible with all GeoTIFF software)

Think of it like a "smart image" that knows where it is on the map and can stream just the parts you need.

Understanding Digital Stacks URLs

The Anatomy of a Digital Stacks URL

https://stacks.stanford.edu/file/druid:vb564st1676/graduation-stanford_stanford-california_20240616_171600_ssc2_nrg_flat_50cm_rotated-154_large_COG.tif

Let's break this down:

https://stacks.stanford.edu - The Digital Stacks web service
/file/ - We're requesting a file (not a PURL page)
druid:vb564st1676 - The DRUID (unique identifier) for this object
/graduation-stanford_...COG.tif - The filename within that object

What is a DRUID?

DRUID = Digital Repository Unique Identifier

A permanent ID for every object in SDR
Format: druid: followed by 11 characters (like vb564st1676)
Never changes, even if the object is updated
Guaranteed to work forever (permanent URLs)

Example DRUID: druid:vb564st1676

vb564st1676 is the actual ID
Broken down: vb + 564 + st + 1676 (letters and numbers)

PURLs vs. Digital Stacks URLs

PURL (Persistent URL):

https://purl.stanford.edu/vb564st1676

Human-readable landing page
Shows metadata, description, download options
Good for linking in papers and websites

Digital Stacks File URL:

https://stacks.stanford.edu/file/druid:vb564st1676/filename.tif

Direct access to the file
Machine-readable
Used in code and applications
Can be loaded directly by mapping libraries

The Complete Code

<!DOCTYPE html>
<html lang="en">
<head>
    <base target="_top">
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <title>Stanford Campus Map - Step 5: Add COG</title>

    <link rel="stylesheet" href="https://unpkg.com/leaflet@1.9.4/dist/leaflet.css" integrity="sha256-p4NxAoJBhIIN+hmNHrzRCf9tD/miZyoHS5obTRR9BMY=" crossorigin=""/>
    <script src="https://unpkg.com/leaflet@1.9.4/dist/leaflet.js" integrity="sha256-20nQCchB9co0qIjJZRGuk2/Z9VM+kNiyxNV1lvTlZBo=" crossorigin=""></script>
    <script src="https://unpkg.com/proj4"></script>
    <script src="https://unpkg.com/georaster"></script>
    <script src="https://unpkg.com/georaster-layer-for-leaflet"></script>

    <style>
        html, body {
            height: 100%;
            margin: 0;
        }
        .leaflet-container {
            height: 600px;
            width: 800px;
            max-width: 100%;
            max-height: 100%;
        }
    </style>
</head>
<body>

<h1>Stanford Public Art Map</h1>
<p>Step 5: Add a Cloud Optimized GEOTIFF (COG) from Digital Stacks</p>

<div id="map" style="width: 800px; height: 600px;"></div>
<script>

    // Initialize map centered on Stanford campus
    const map = L.map('map').setView([37.427, -122.169], 15);

    // Add OpenStreetMap tile layer
    const tiles = L.tileLayer('https://tile.openstreetmap.org/{z}/{x}/{y}.png', {
        maxZoom: 19,
        attribution: '&copy; <a href="http://www.openstreetmap.org/copyright">OpenStreetMap</a>'
    }).addTo(map);

    // URL to the COG file - using relative path
    var url_to_geotiff_file = new URL("collection/stanford_campus_irg.tif", window.location.href).href;

    // Parse and display the COG
    parseGeoraster(url_to_geotiff_file).then(georaster => {
      console.log("georaster:", georaster);

      // Fetch mask GeoJSON to clip the raster
      fetch("collection/stanford_campus.geojson")
        .then(r => r.json())
        .then(maskGeojson => {
          // Create the raster layer
          var layer = new GeoRasterLayer({
            attribution: "Planet",
            georaster: georaster,
            resolution: 128,
            mask: maskGeojson
          });

          // Add to map and zoom to bounds
          layer.addTo(map);
          map.fitBounds(layer.getBounds());
        });
    }).catch(console.error);

    // Load and display artwork points (from previous step)
    fetch('collection/stanford_public_art.geojson')
        .then(response => response.json())
        .then(data => {
            const artworkLayer = L.geoJSON(data, {
                pointToLayer: function(feature, latlng) {
                    return L.circleMarker(latlng, {
                        radius: 6,
                        color: 'white',
                        weight: 2,
                        fillColor: 'blue',
                        fillOpacity: 0.7
                    });
                },
                onEachFeature: function(feature, layer) {
                    const props = feature.properties || {};
                    const title = props.name || 'Artwork';
                    const artist = props.artist_name;
                    const type = props.artwork_type;

                    let popupContent = '<div style="min-width:200px;">';
                    popupContent += '<b>' + title + '</b><br>';
                    if (artist) popupContent += '<b>Artist:</b> ' + artist + '<br>';
                    if (type) popupContent += '<b>Type:</b> ' + type;
                    popupContent += '</div>';

                    layer.bindPopup(popupContent);
                }
            }).addTo(map);

            map.fitBounds(artworkLayer.getBounds());
        })
        .catch(error => console.error('Error loading GeoJSON:', error));

</script>

</body>
</html>

What's New?

1. New JavaScript Libraries

We're adding three new libraries to handle GeoTIFF files:

<script src="https://unpkg.com/proj4"></script>
<script src="https://unpkg.com/georaster"></script>
<script src="https://unpkg.com/georaster-layer-for-leaflet"></script>

proj4: Handles coordinate system transformations (different map projections)

georaster: Reads and parses GeoTIFF files

georaster-layer-for-leaflet: Displays georasters on Leaflet maps

2. Constructing the File URL

var url_to_geotiff_file = new URL("collection/stanford_campus_irg.tif", window.location.href).href;

What this does: Converts a relative path to an absolute URL

Breaking it down:

"collection/stanford_campus_irg.tif" - Relative path to our file
window.location.href - The current page's full URL
new URL(relative, base) - JavaScript function that resolves relative paths
.href - Gets the full absolute URL as a string

Why we need this: The georaster library requires a full URL, not just a relative path.

Example transformation:

Your HTML is at: file:///Users/you/project/index.html
Relative path: collection/stanford_campus_irg.tif
Result: file:///Users/you/project/collection/stanford_campus_irg.tif

In SDR:

Your HTML is at: https://stacks.stanford.edu/file/druid:abc123/index.html
Relative path: collection/stanford_campus_irg.tif
Result: https://stacks.stanford.edu/file/druid:abc123/collection/stanford_campus_irg.tif

Using Digital Stacks directly:

var url_to_geotiff_file = "https://stacks.stanford.edu/file/druid:vb564st1676/graduation-stanford_COG.tif";

3. Parsing the GeoTIFF

parseGeoraster(url_to_geotiff_file).then(georaster => {
  console.log("georaster:", georaster);
  // ... more code ...
}).catch(console.error);

What is .then()? This is a Promise - JavaScript's way of handling asynchronous operations (tasks that take time).

Think of it like ordering food:

You order (call parseGeoraster())
You wait (the file downloads and processes)
Food arrives (.then() runs with the result)
Something went wrong (.catch() handles errors)

The georaster object contains:

Image width and height
Geographic bounds (where the image belongs on Earth)
Pixel values (the actual image data)
Coordinate reference system information

console.log() prints information to the browser's developer console (press F12 to see it).

4. Loading the Mask GeoJSON

fetch("collection/stanford_campus.geojson")
  .then(r => r.json())
  .then(maskGeojson => {
    // Use the mask
  });

What is a mask? A GeoJSON polygon that clips (cuts out) the raster to a specific shape.

Why use a mask? The COG might cover a large area, but we only want to show Stanford campus.

The fetch() function:

Downloads files from URLs (local or remote)
Returns a Promise (uses .then() like above)
.json() parses the response as JSON data

Nested .then(): We wait for the GeoJSON to load, then create the layer.

5. Creating the Raster Layer

var layer = new GeoRasterLayer({
  attribution: "Planet",
  georaster: georaster,
  resolution: 128,
  mask: maskGeojson
});

Configuration options:

attribution: "Planet" - Credit for the imagery source
georaster: georaster - The parsed GeoTIFF data
resolution: 128 - How many pixels to render (lower = faster but blockier)
mask: maskGeojson - Clip the raster to this polygon

Resolution explained:

Higher numbers (256, 512) = sharper but slower
Lower numbers (64, 128) = faster but more pixelated
Try different values to balance quality and performance

6. Adding to Map and Fitting Bounds

layer.addTo(map);
map.fitBounds(layer.getBounds());

.addTo(map) - Displays the layer on the map

map.fitBounds() - Automatically zooms and centers the map to show the entire raster layer

File Structure for SDR Deposit

When depositing to SDR, organize your files like this:

your-sdr-object/
├── index.html (your main HTML file)
├── collection/
│   ├── stanford_campus_irg.tif (the COG)
│   ├── stanford_campus.geojson (mask boundary)
│   └── stanford_public_art.geojson (artwork points)
└── README.md (optional documentation)

All file references in your HTML use relative paths:

fetch("collection/stanford_campus.geojson")

After deposit with DRUID abc123xyz456, files are accessible at:

https://stacks.stanford.edu/file/druid:abc123xyz456/index.html
https://stacks.stanford.edu/file/druid:abc123xyz456/collection/stanford_campus_irg.tif
https://stacks.stanford.edu/file/druid:abc123xyz456/collection/stanford_campus.geojson

Your relative paths keep working!

Referencing External COGs from Digital Stacks

You can also reference COGs from other SDR deposits:

var url_to_geotiff_file = "https://stacks.stanford.edu/file/druid:vb564st1676/graduation-stanford_stanford-california_20240616_171600_ssc2_nrg_flat_50cm_rotated-154_large_COG.tif";

Benefits:

No need to duplicate large files
Always access the latest version
Save storage space

Use case: Build a collection viewer that references imagery from multiple DRUIDs.

Try It Yourself

Make sure you have the GeoTIFF file in collection/stanford_campus_irg.tif
Copy the complete code into step-05.html
Open in your browser

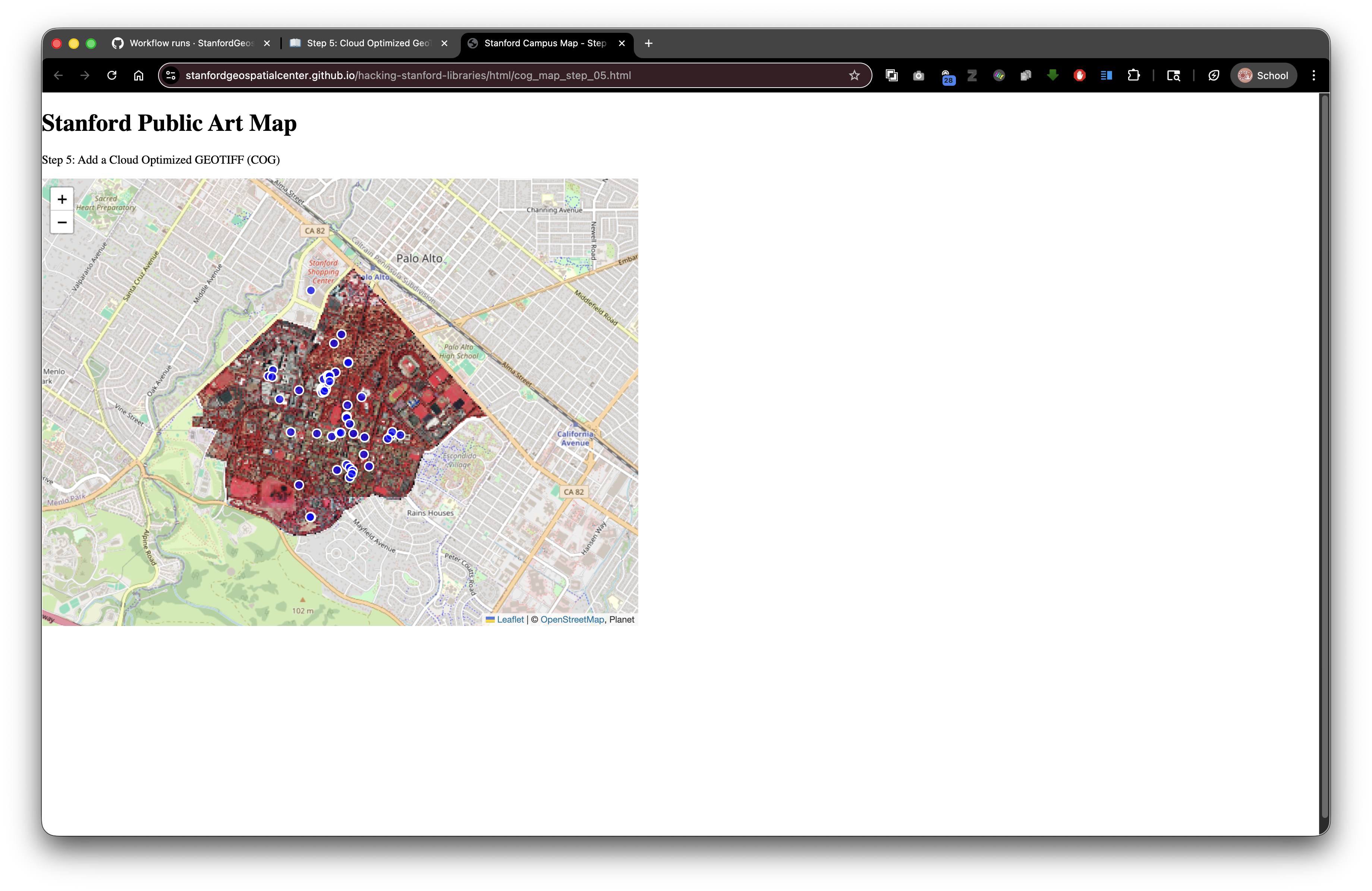

You should see the aerial photograph overlaid on the map!

Troubleshooting

If the image doesn't appear:

Check the browser console (F12) for errors
Verify the file path is correct
Make sure the file exists
Try using the absolute Digital Stacks URL instead

If the image is too slow:

Reduce the resolution: resolution: 64
Check your internet connection
The first load is always slower (caching helps after)

The Power of COGs with Digital Stacks

This combination is powerful because:

COGs stream efficiently - Users don't download the whole file
Digital Stacks serves reliably - Stanford's infrastructure is robust
Files are permanent - DRUIDs never break
Bandwidth is optimized - Only needed tiles are transferred
Works globally - Fast access from anywhere

Traditional approach (without COGs):

User clicks "view map"
Browser downloads 500MB GeoTIFF
Wait 5+ minutes on slow connection
Browser might crash with large files

COG approach:

User clicks "view map"
Browser fetches just the visible portions (~1-5MB)
Map appears in seconds
Smooth experience on any device

What's Next?

In Step 6: Split-Screen Layout with External CSS, we'll reorganize our page to show the map on the left and create space for Wikidata information on the right!

Key Takeaways

COGs enable efficient streaming of large raster files
Digital Stacks URLs follow the pattern: stacks.stanford.edu/file/druid:ID/filename
DRUIDs are permanent identifiers that never change
Relative paths work perfectly in SDR deposits
The new URL() function resolves relative paths to absolute URLs
Promises (.then()) handle asynchronous operations
Masks clip rasters to specific geographic areas

Common Questions

Q: Can I use my own GeoTIFF?

A: Yes! Use any georeferenced TIF file. Convert to COG format with GDAL for best performance.

Q: How do I get a DRUID?

A: Deposit your files to SDR through the Stanford digital repository system. A DRUID is assigned automatically.

Q: Can I use COGs from other sources?

A: Yes! Any publicly accessible COG works. Try USGS, NASA, or other open data sources.

Q: Why use a mask?

A: Masks improve performance and focus attention on your area of interest.

Previous: Step 4: Add Popups | Next: Step 6: Split Layout

Step 5: Cloud Optimized GeoTIFF from Digital Stacks
